EPX 82

High-strength, excellent long-term durability, functional toughness

High-Strength, Long-Term Durability, and Functional Toughness

EPX 82 is a high-strength epoxy-based engineering material with excellent long-term durability and mechanical properties comparable to lightly glass-filled thermoplastics (e.g. 20% GF-PBT, 15% GF-Nylon). EPX 82 has a heat deflection temperature ranging from 104°C to 130°C (depending on conditioning) and the functional toughness required for a variety of automotive and industrial applications such as connectors, brackets, and housings. Baking EPX 82 in an inert oven significantly improves functional toughness and impact strength while still retaining other key performance metrics.

The above chart and mechanical properties reflect the performance of EPX 82 when baked in an inert environment

EPX 82

Carbon, Inc.
  • Ultimate Tensile Strength

    84 MPa 12 ksi
  • Heat Deflection Temperature

    130 °C 266 °F
  • Elongation At Break

    8 %
  • Impact Strength (Notched)

    45 J/m 0.84 ft-lb/in
  • Tensile Modulus

    2800 MPa 406 ksi

Comparable Thermoplastics

High-Performance (PEEK, PEI, PSU, PSSU), PBT, Polyamides / Nylons, Polycarbonate, Polypropylene

CHEMICAL RESISTANT

EPX 82 shows no surface blemishes and minimal change in tensile properties after chemical exposure simulating splash contact per USCAR-2 conditions.

EXCEPTIONAL ENDURANCE

EPX 82 has excellent retention of material properties during high temperature aging, temperature/humidity cycling, and thermal shock.

LOW OFF-GASSING

EPX 82 passes stringent odor, fogging, and emissions standards required for interior automotive applications.

Example Applications

These applications combine a need for functional toughness, stiffness, and temperature resistance, in addition to isotropy, great surface finish, and accuracy.

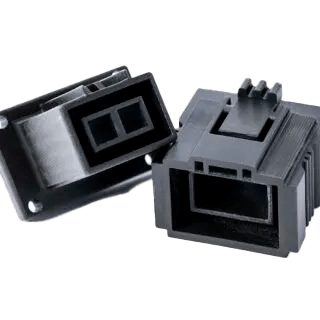

CONNECTORS

CONNECTORS

This T2 connector requires toughness, stiffness, temperature resistance, chemical resistance, accuracy, and surface finish.

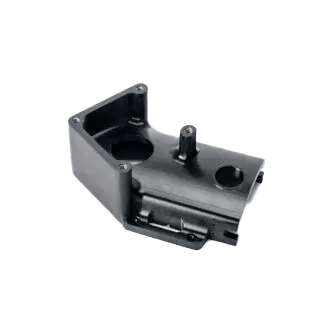

BRACKETS

BRACKETS

Demanding brackets often require toughness, stiffness, temperature resistance, accuracy, and occasionally chemical resistance.

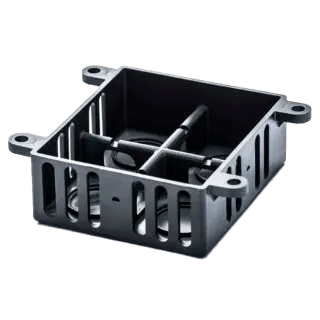

HOUSINGS

HOUSINGS

Housings, especially in consumer facing parts, require toughness, stiffness, temperature resistance, accuracy, and a great surface finish.

APTIV and Ford Trust EPX 82

“EPX 82 is the only material on the market that lends its self to automotive.”

DANIEL BAKER
Manufacturing Engineering, Fast Radius

3D Printed Parts in Production

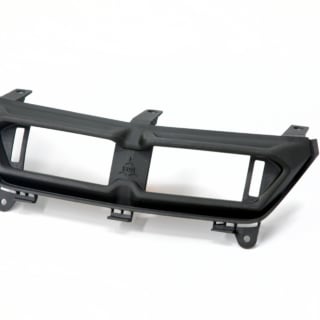

LAMBORGHINI SIÁN FKP 37 AIR VENT

LAMBORGHINI SIÁN FKP 37 AIR VENT

An interior textured air vent in the Lamborghini Sián FKP 37, made with EPX 82.

Carbon and Lamborghini Expand Partnership to Digitally Manufacture Parts

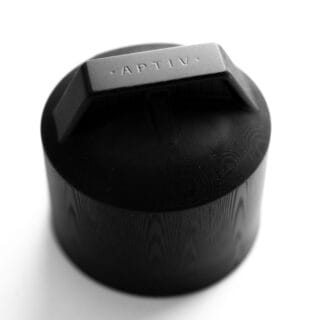

APTIV TRAILER-TOW CONNECTOR CAP

APTIV TRAILER-TOW CONNECTOR CAP

A trailer-tow connector cap for Ford Super Duty trucks to protect the electrical connectors from harsh environmental exposure, made with EPX 82.

Serial Products in 16 Weeks

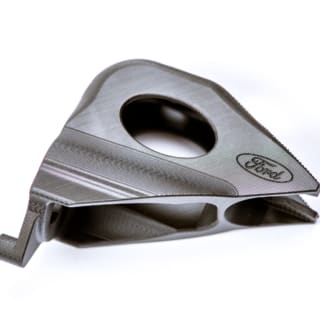

FORD MUSTANG GT 500 EPB BRACKET

FORD MUSTANG GT 500 EPB BRACKET

An electronic parking brake for the Ford Mustang GT 500, made with EPX 82.

Carbon and Ford Expand Collaboration to Digitally Manufacture New Durable, End-Use Parts

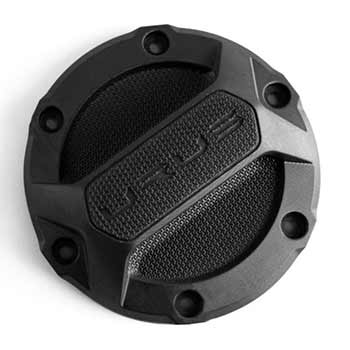

LAMBORGHINI URUS FUEL CAP

LAMBORGHINI URUS FUEL CAP

Ask An Additive Expert

Hear from Alyson, an applications engineer and Additive Expert at Carbon, about EPX 82’s unique mechanical properties.
