LOCTITE® 3D IND405 Clear Resin 3D Printing

The Toughest, Clear Resin for 3D Printing

LOCTITE^® 3D IND405 Clear certified for Carbon^® printers is a clear, tough, semi rigid, 3D printable material from LOCTITE^®. The material is produced as a one-part resin. It offers an attractive, frosted clear finish that can be post-processed for enhanced clarity. Its mechanical behavior is comparable to unfilled propylene.

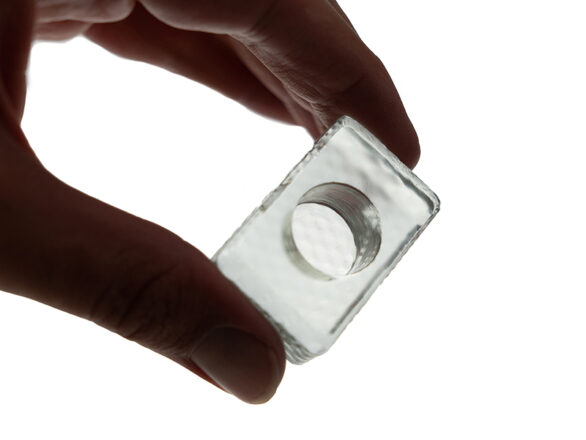

*The prints featured here were provided by ProtoCAM and polished with advanced finishing techniques.

Purchase Material (North America) Purchase material (Europe)

LOCTITE^® 3D IND405 Clear

Henkel

Ultimate Tensile Strength
42 MPa 6 ksi
Heat Deflection Temperature
53 °C 127.4 °F
Elongation At Break
120 %
Impact Strength (Notched)
50 J/m 0.94 ft-lb/in
Tensile Modulus
1500 MPa 218 ksi
Comparable Thermoplastics
PMMA, Polycarbonate, Polypropylene, POM

FROSTED CLEAR

This resin produces parts with an attractive frosted clear finish out of the printer. Parts can be manually post-processed for enhanced clarity.

TOUGH

These parts offer the highest toughness of any clear, 3D printable resin. With high impact resistance, it is well-suited for functional prototypes and select end-use parts.

STABLE CLARITY

Parts made with this material exhibit stable optical and material properties over time.

Example Applications

These applications combine a need for functional toughness, stiffness, and temperature resistance, in addition to isotropy, great surface finish, and accuracy.

Fluid Ducts

Fluid ducts often require transparency, strength, toughness, accuracy, and a great finish in complex shapes that are difficult to mold.

High Impact, High Pressure Tooling

Sheet metal forming requires high strength, toughness, and impact resistance at low temperatures in complex shapes.

Introducing LOCTITE 3D IND405 Clear

Watch the launch webinar to learn more about LOCTITE 3D IND405 Clear from Henkel. If you have questions about the latest product information, please contact us directly.
